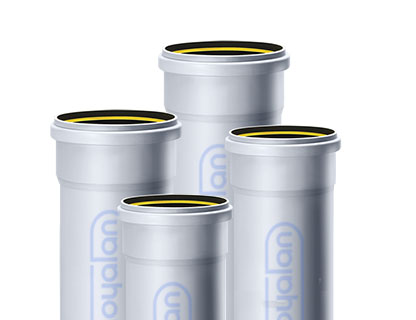

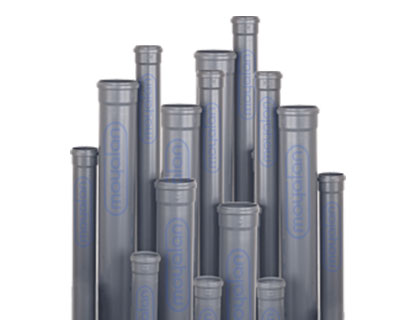

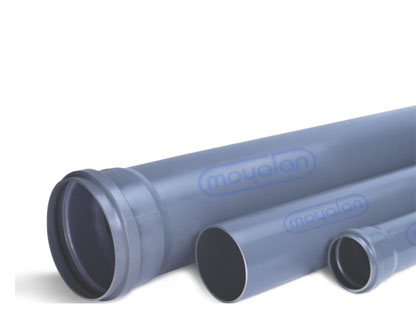

SWR PIPES (A&B) 13592 (75-160)
SWR Pipes are designed as extremely durable pipes with a leak proof joint adhering with the quality standards of 13592 and its systems include an extensive range of soil, waste & rainwater plumbing products for commercial, industrial, housing and public sector developments. SWR pipes are also used in buildings and are well provided for a trouble free, long lasting and leak proof installation as they are prepared with specially designed with rubber rings sockets and with pasting type sockets. The product is also widely appreciated for energy efficient and better flow characteristic.
FEATURES:
- Strength and Durability
The S.W.R. pipes & fittings are strong, sturdy and unbreakable making it resilient to adverse weather and any sort of bacterial and termite attacks.
- Easy Handling and Installation
These are light in weight, thus making it easy to handle and install.
- Energy Efficiency
There is no deposit formation, hence diameter of pipe remains the same resulting in smooth internal surface resulting in low frictional loss and better flow. Hence power consumption is on lower side.
- Leak Proof
These are leak proof due to close dimensional tolerance and precision design.
- Cost Effective and Maintenance Free
These are cost effective and long lasting also being free from rusting and unaffected by environmental stress. In addition to this they are resistant to rust and most of the chemicals.
- Safe
These are fire resistant and non-conductor of electricity.
Advantages:
- Stronger, resilient & light weight
- Corrosion resistance
- CHEMICAL RESISTANCE
- Non conductive
- Flammability
- High flow rates
- Versatile and elegant
- Quick & easy installation
- Environment safe
SPECIFICATION
| Nominal Outside Diameter DN |
Mean Outside Diameter | Outside Diameter at any point |
Wall Thickness Type A |
Wall Thickness Type B |
||||
|---|---|---|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
| 75 | 75.2 | 75..3 | 74.1 | 75.9 | 1.8 | 2.2 | 3.2 | 3.8 |
| 90 | 90.0 | 90.3 | 88.9 | 91.2 | 1.9 | 2.3 | 3.2 | 3.8 |
| 110 | 110.0 | 110.4 | 108.6 | 111.4 | 2.2 | 2.7 | 3.2 | 3.8 |
| 140 | 140.0 | 140.5 | 138.3 | 141.7 | 2.9 | 3.4 | 3.6 | 4.2 |
| 160 | 160.0 | 160.5 | 158.0 | 163.0 | 3.2 | 3.8 | 4.0 | 4.6 |
