UPVC PIPES
4985
UPVC Pressure & Non Pressure Pipes are supplying in accordance with IS: 4985 covering a complete range from 20mm to 315mm. The pipes are provided with plain socket and suitable for solvent cement jointing. Their main application is in agriculture, for water supply, drip irrigation and sprinkler lines, etc. as well as for drinking water distribution. However, these can also used in cable ducting ventilation pipe lines, slurry lines, etc.
FEATURES:
- Fire Resistance
UPVC pipes do not support combustion and are self-extinguishing, a fact that has been proven over a considerable amount of time. They are, therefore, ideally suited for use in buildings and other constructions
- Hydraulic resistance and flow charactreristics
For their smooth inner surface, uPVC pipes allow a greater flow of water than an identical size of conventional piping. The For their smooth inner surface, uPVC pipes allow a greater flow of water than an identical size of conventional piping. The Haze-Willam's constant for flow for uPVC pipe is around 150, which is higher than that for conventional materials. The head loss of any proposed uPVC pipeline can be readily calculated.
- Longetivity
Do not react with acidic or alkaline water. Have a very long life inside the bore well.
- Storage and Handling
These pipes are more easily handled than their metal counterparts. Reasonable care, however, should be used at all times. Since the soundness of any joint depends on the condition of the spigot and the socket, special care must be taken in transit, handling and storage to avoid damage to the ends.
Advantages:
- Odorless and hygienic
- High corrosion resistance
- High chemical resistance
- Smooth bore
- Self extinguishing quality
- Maintenance free
- Long lasting
- Economical
SPECIFICATION
|
Normal outside |
Tolerence On Outside |
Class 12.5 Kg/cm2 |
Class 24 Kg/cm2 |
Class 36
Kg/cm2 |
Class 48
Kg/cm2 |
Class 510
Kg/cm2 |
Class 612.5
Kg/cm2 |
||||||
| Diameter | Diameter | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 20 | 0.3 | 1.1 | 1.5 | 1.4 | 1.8 | ||||||||
| 25 | 0.3 | 1.2 | 1.6 | 1.4 | 1.8 | 1.7 | 2.1 | ||||||
| 32 | 0.3 | 1.5 | 1.9 | 1.8 | 2.2 | 2.2 | 2.7 | ||||||
| 40 | 0.3 | 1.4 | 1.8 | 1.8 | 2.2 | 2.2 | 2.7 | 2.8 | 3.3 | ||||
| 50 | 0.3 | 1.7 | 2.1 | 2.3 | 2.8 | 2.8 | 3.3 | 3.4 | 4 | ||||
- Pressure Pipes
- Plumbing Pipes
- Elastomeric Pipes

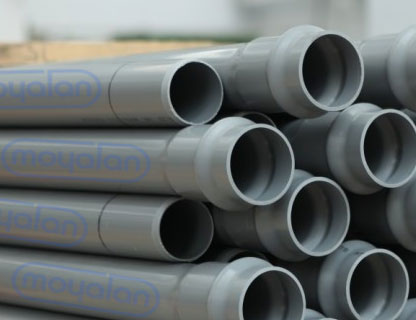

Pressure Pipes (20-315)
Moyalan offers the highest range of UPVC pipe fittings with a wide range 20mm to 315mm with working pressure of UPVC Pressure Pipe Fitting
Features
- High flow characteristics
- Light in Weight
- Easy to handle & transport
- Excellent flexibility combined with strength
- Good abrasion resistance
- Smooth inner walls minimize frictional losses
- Safe for potable water supply
SPECIFICATION
| Outer diameter,d |
PVC125 (PVC-100) |
SDR 41 S20 PN6.3(PN5) | SDR 33 S16 PN8(PN6,3) | SDR 26 S12,5 PN10(PN8) | SDR 21 S10 PN12,5(PN10) | SDR 17 S8 PN16(PN12,5) | |||||
| Pipe Wall Thickness | |||||||||||
| Normal Value, mm | Limit deviation, mm | Normal Value, mm | Limit deviation, mm | Normal Value, mm | Limit deviation, mm | Normal Value, mm | Limit deviation, mm | Normal Value, mm | Limit deviation, mm | Normal Value, mm | Limit deviation, mm |
| 20 | +0.3 | ||||||||||
| 25 | +0.3 | 1.5 | +0.4 | ||||||||
| 32 | +0.3 | 1.6 | +0.4 | 1.9 | +0.4 | ||||||
| 40 | +0.3 | 1.5 | +0.4 | 1.6 | +0.4 | 1.9 | +0.4 | 2.4 | +0.5 | ||
| 50 | +0.3 | 1.6 | +0.4 | 2.0 | +0.5 | 2.4 | +0.5 | 3.0 | +0.6 | ||
| 63 | +0.3 | 1.6 | +0.4 | 2.0 | +0.5 | 2.5 | +0.5 | 3.0 | +0.6 | 3.8 | +0.6 |
| 75 | +0.3 | 1.9 | +0.4 | 2.3 | +0.5 | 2.9 | +0.5 | 3.6 | +0.6 | 4.5 | +0.7 |
| 90 | +0.3 | 2.2 | +0.5 | 2.8 | +0.5 | 3.5 | +0.6 | 4.3 | +0.7 | 5.4 | +0.8 |
| 110 | +0.4 | 2.7 | +0.5 | 3.4 | +0.6 | 4.2 | +0.7 | 5.3 | +0.8 | 6.6 | +0.9 |
| 160 | +0.5 | 4.0 | +0.7 | 4.9 | +0.7 | 6.2 | +0.9 | 7.7 | +1.0 | 9.5 | +1.2 |
| 225 | +0.7 | 5.5 | +0.8 | 6.9 | +0.9 | 8.6 | +1.1 | 10.8 | +1.3 | 13.4 | +1.6 |
| 280 | +0.9 | 6.9 | +0.9 | 6.6 | +1.1 | 10.7 | +1.3 | 13.4 | +1.6 | 16.6 | +1.9 |
| 315 | +1.0 | 7.7 | +1.0 | 9.7 | +1.2 | 12.1 | +1.5 | 15.0 | +1.8 | 16.7 | +2.1 |

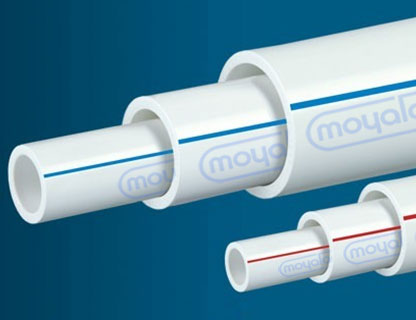

Plumbing Pipes (20)
Plumbing pipes are made especially thick to prevent damage in handling and misuse.
Features
- Manufactured as per IS: 4985 - 2000.
- Safe for drinking water supply system.
- Light in weight, easy to handle and install.
- Rust and leak proof and have high resistance to heat, fire etc.
SPECIFICATION
Pipes (Black) (3L-Thermex) (PN 20)
|
Size (in mm) |
Std Packing |
| 20mm | 86 |
| 25mm | 60 |
| 32mm | 36 |
| 40mm | 22 |
| 50mm | 14 |
| 63mm | 8 |
Pipes (Black) (3L-Thermex) (PN 16)
|
Size (in mm) |
Std Packing |
| 20mm | 100 |
| 25mm | 70 |
| 32mm | 40 |
| 40mm | 26 |
| 50mm | 16 |
| 63mm | 10 |

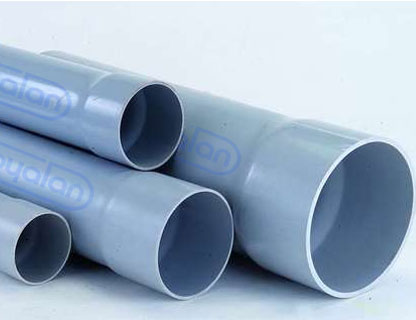

Elastomeric Pipes (20)
These pipes are produced with elastomeric sealing ring. For jointing such pipes PVC adhesive (Solvent cement) is not required.
Features
- Corrosion resistant pressure pipe
- Resistant to most acids, bases, salts, aliphatic, solutions, oxidants and halogens
- Best in chemical processing, plating, high purity applications, potable water systems, water and wastewater treatment irrigation, agriculture and other industrial applications involving corrosive fluid transfer
- Plumbing and drainage systems in the dwelling houses
- Reliable leak proof joints
SPECIFICATION
|
Nominal Outside Diameter (Nominal Size) |
Mean Out Side Diameter | |
| Min. | Max | |
| 75 | 75.0 | 75.3 |
| 90 | 90.0 | 90.3 |
| 110 | 90.0 | 110.4 |
| 125 | 125.0 | 125.4 |
| 140 | 140.0 | 140.5 |
| 160 | 160.0 | 160.5 |
| 180 | 180.0 | 180.6 |
| 200 | 200.0 | 200.6 |
| 225 | 225.0 | 225.7 |
| 250 | 250.0 | 250.8 |
| 280 | 280.0 | 280.9 |
| 315 | 315.0 | 316.0 |
| Wall Thickness | |||||||||||
|
Class 1 0.25 mpa |
Class 2 0.4 mpa |
Class 3 0.6 mpa |
Class 4 0.8 mpa |
Class 5 1.0 mpa |
Class 6 1.25 mpa |
||||||
| Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
| 1.8 | 2.2 | 2.6 | 3.1 | 3.4 | 4.0 | 4.2 | 4.9 | 5.1 | 5.9 | ||
| 1.3 | 1.7 | 2.1 | 2.6 | 3.1 | 3.7 | 4.0 | 4.6 | 5.0 | 5.7 | 6.1 | 7.1 |
| 1.6 | 2.0 | 2.5 | 3.0 | 3.7 | 4.3 | 4.9 | 5.6 | 6.1 | 7.1 | 7.5 | 8.7 |
| 1.8 | 2.2 | 2.9 | 3.4 | 4.3 | 5.0 | 5.6 | 6.4 | 6.9 | 8.0 | 8.5 | 9.8 |
| 2.0 | 2.4 | 3.2 | 3.8 | 4.8 | 5.5 | 6.3 | 7.3 | 7.7 | 8.9 | 9.5 | 11.0 |
| 2.3 | 2.8 | 3.7 | 4.3 | 5.4 | 6.2 | 7.2 | 8.3 | 8.8 | 10.2 | 10.9 | 12.6 |
| 2.6 | 3.1 | 4.2 | 4.9 | 6.1 | 7.1 | 8.0 | 9.2 | 9.9 | 11.4 | 12.2 | 14.4 |
| 2.9 | 3.4 | 4.6 | 5.3 | 6.8 | 7.9 | 8.9 | 10.3 | 11.0 | 12.7 | 13.6 | 15.7 |
| 3.2 | 3.9 | 5.2 | 6.0 | 7.6 | 8.8 | 10.0 | 11.5 | 12.4 | 14.3 | 15.3 | 17.6 |
| 3.6 | 4.2 | 5.7 | 6.5 | 8.5 | 9.8 | 11.2 | 12.9 | 13.8 | 15.9 | 17.0 | 19.6 |
| 4.1 | 4.8 | 6.4 | 7.4 | 9.5 | 11.0 | 12.5 | 14.4 | 15.4 | 17.8 | 19.0 | 21.9 |
| 4.6 | 5.3 | 7.2 | 8.3 | 10.7 | 12.4 | 14.0 | 16.1 | 17.3 | 19.9 | 21.4 | 24.7 |
